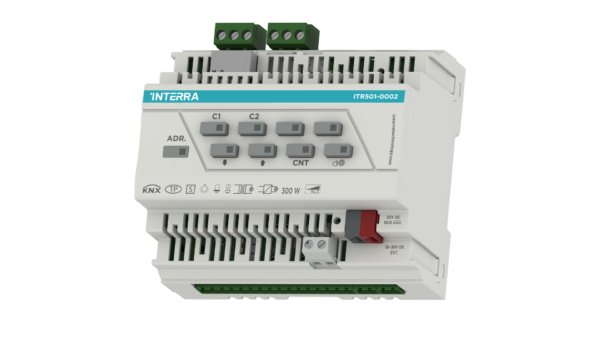

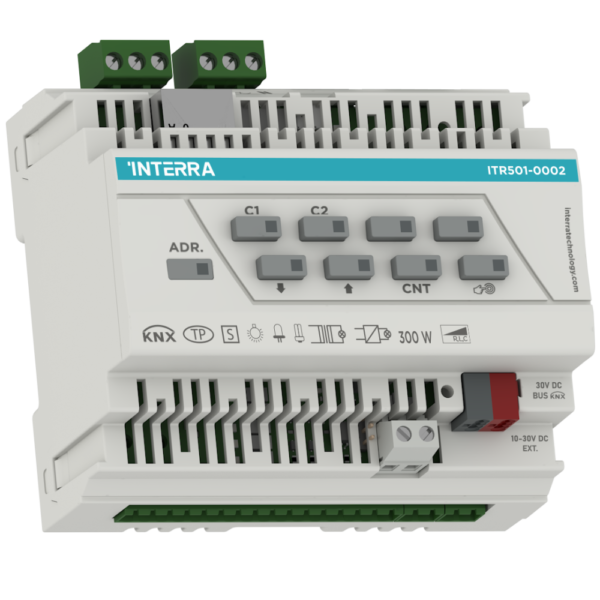

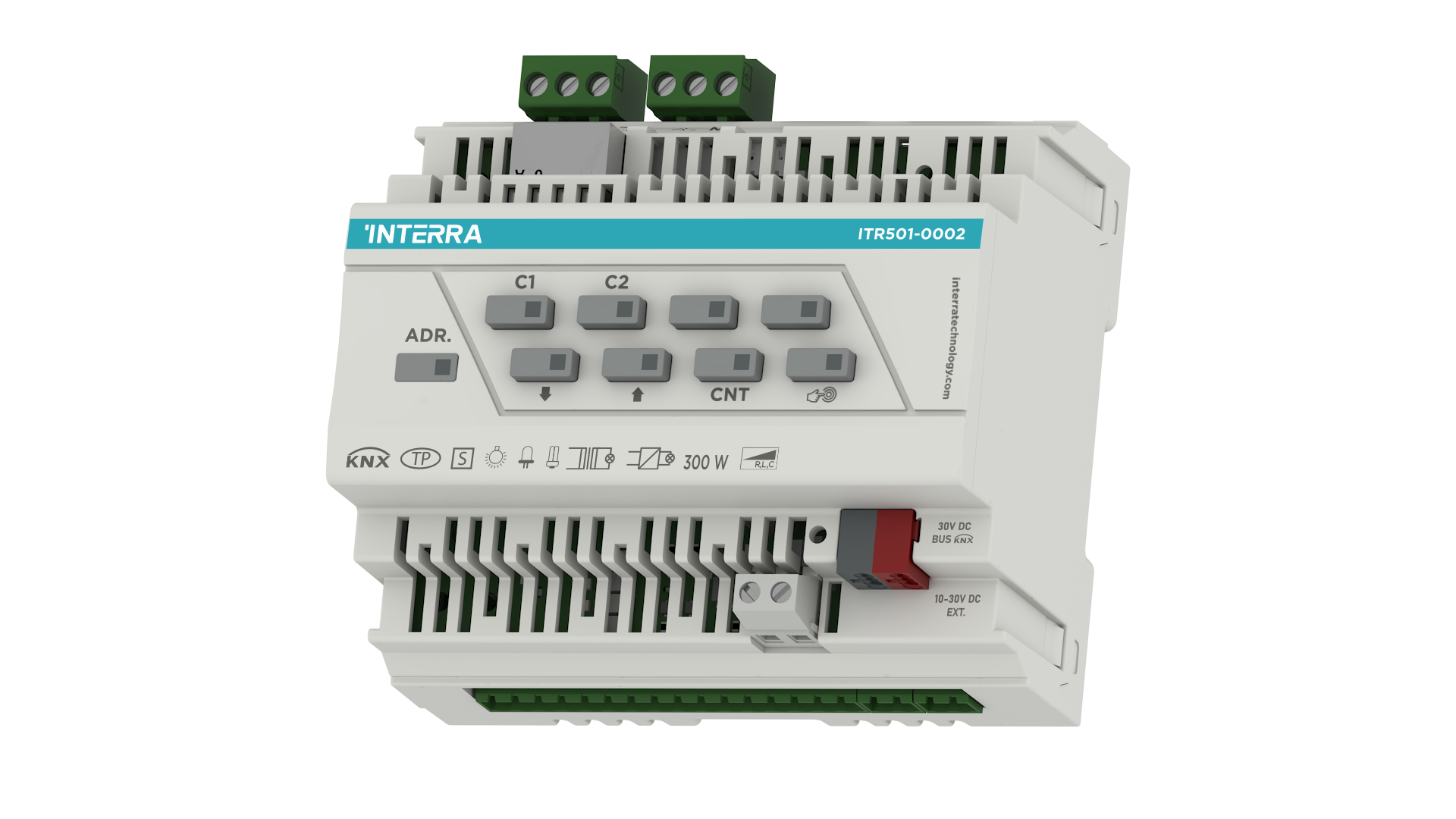

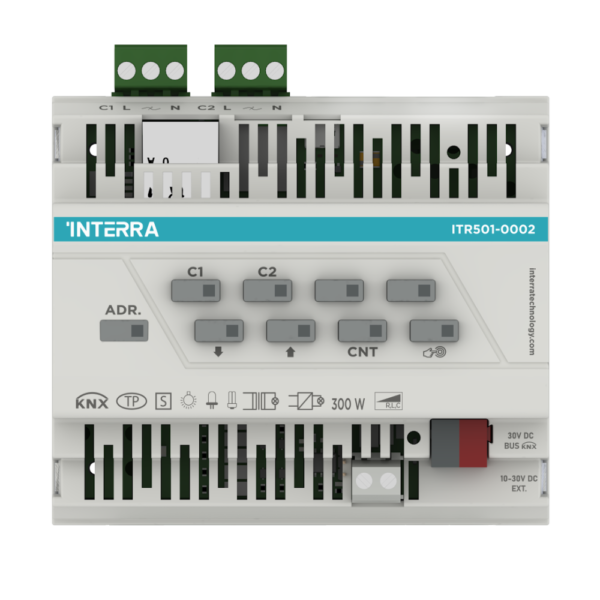

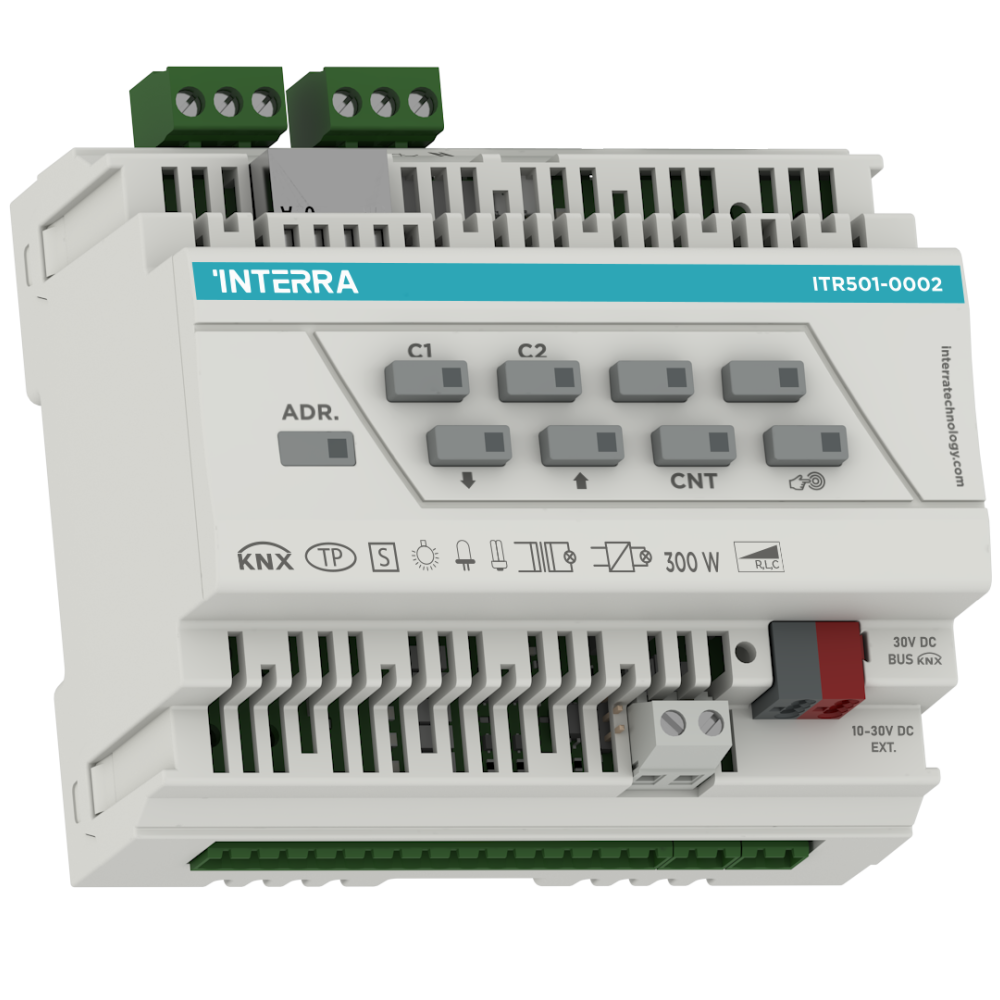

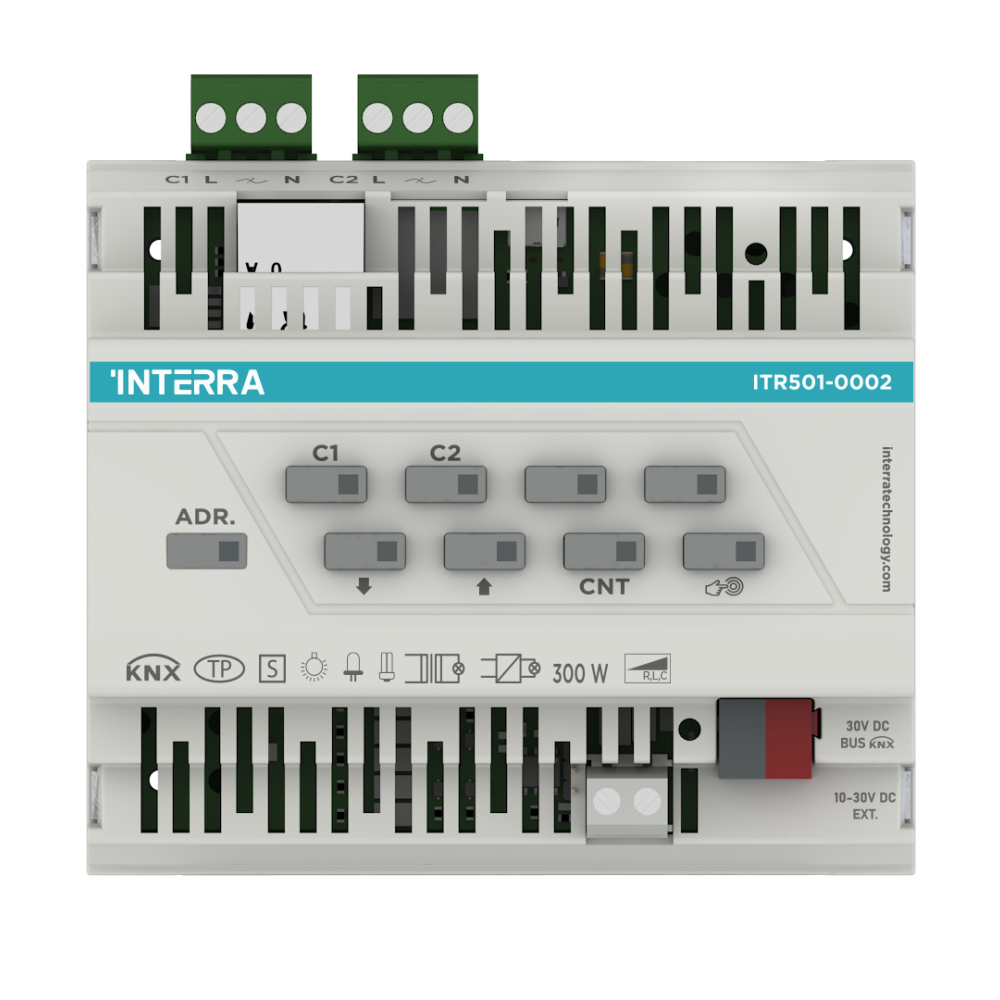

Interra 2 Channel Universal Dimming Actuator can produce 300W output power from each channel and drive R, L and C loads. Temperature protection, short circuit protection, error notification via channel LEDs, load presence detection and load type detection features are available. It is possible to program the device without applying 230 V supply voltage.

Main Features:

• Automatic load recognition based on ETS configurations

• Ability to control incandescent lamps, low voltage and high voltage halogen lamps, dimmable LED retrofit lamps and dimmable compact fluorescent lamps

• Dividing the dim curve into 5 regions and adjusting the dimming speed of each region separately

• RGB LED status indicator for each channel

• Manual control via device

• Ability to work with 3-Phase systems with separate phase and neutral connections for each channel
