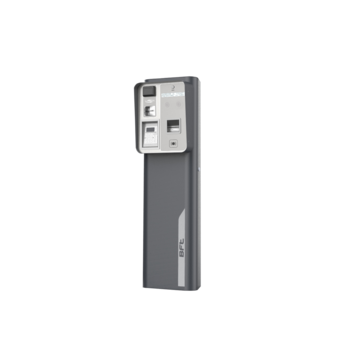

The Espas 30-U CC Ultra station is a device for managing an exit gate from a parking area and allows payment of the parking by credit card, scanning the entry ticket. The unit works in a wired network as a component between the other elements of the system. Equipped with ticket scanner and discount amount, proximity reader for operator and subscriber card, C/C terminal with CHIP and PIN and contactless. The display and voice messages guide improve the user experience.
Basic components
Dedicated electronic board with integrated display and onboard joystick for quick programming and consultation of alarms.
Fanfold ticket thermal printer for customer’s receipt.
Capacity of 4000 fanfold tickets with easy loading.
Credit card module consisting of card reader, pinpad and contactless reader.*
Barcode scanner.
Proximity card reader for operators and subscriptions.
20 characters x 2 rows backlit LCD display
Illuminated ticket nozzle
Multilanguage audio and display messages.
Internal temperature regulated by forced ventilation and heating element.
Programmable and highly sensitive two-channels loop detector.
Automatic barrier management.
Assistance call button.
RS485 – TCP/IP connection.
Guaranteed operation also during server offline periods.
Working mode configurable by software, control board or operator cards.
Alarms management with notification to the parking server.
*NOTE: composition may change, depending on the country.
Ethernet switch with extended temperature range
Optional components
Proximity MIFARE card reader for operators and subscriptions.
Bus or IP intercom.
Barcode scanner.
Cage barriers management.
Customizable cabinet colour.
| Supply voltage | 230 VAC ±10%, 50Hz-60Hz |
| Max power consumption | 230 W |
| Idle power consumption | 90 W |
| Operating temperature | -20 ÷ 50 °C |
| Sizes | 1265 x 341 x 364 inch |
| Gross weight | 65 kg |
| Standard communication interface | RS485 – TCP/IP |
| Standard color | RAL7015 |
| Material | Cabinet in 2.0 mm thick DD11 (UNI EN 10111) steel sheet; front panel in anti-wear and anti-scratch polycarbonate. |
