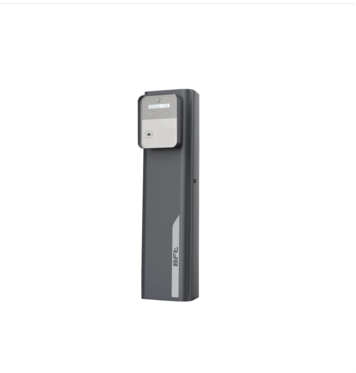

The ESPAS 30-A ULTRA station is a device for controlling an entry or exit transit point of a parking area. The unit works in a wired network as a component between the other elements of the system. This device allows to manage subscribers and operator card. The display and voice messages guide improve the user experience.
Basic components
Dedicated electronic board with integrated display and onboard joystick for quick programming and consultation of alarms.
Proximity card reader for operators and subscriptions.
20 characters x 2 rows backlit LCD display
Multilanguage audio and display messages.
Internal temperature regulated by forced ventilation and heating element.
Programmable and highly sensitive two-channels loop detector.
Automatic barrier management.
Assistance call button.
RS485 interface.
Guaranteed operation also during server offline periods.
Working mode configurable by software, control board or operator cards.
Alarms management with notification to the parking server.
Optional components
Proximity MIFARE card reader for operators and subscriptions.
Bus or IP intercom.
RS485 / LAN converter.
Single lane, two ways gate management.
Cage barriers management.
Double-height terminals availability.
Customizable cabinet colour.
| Supply voltage | 230 VAC ±10%, 50Hz-60Hz |
| Max power consumption | 200 W |
| Idle power consumption | 70 W |
| Operating temperature | -20 ÷ 50 °C |
| Sizes | 1265 x 341 x 315 inch |
| Gross weight | 60 kg |
| Standard communication interface | RS485 |
| Standard color | RAL7015 |
| Material | Cabinet in 2.0 mm thick DD11 (UNI EN 10111) steel sheet; front panel in anti-wear and anti-scratch polycarbonate. |
