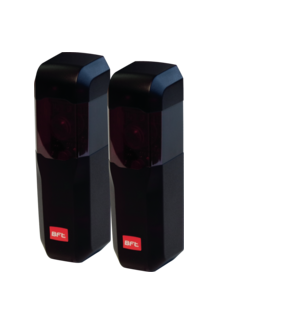

Automatic gates photocells
Pair of adjustable photocells, designed to offer a high level of installation flexibility thanks to their compact size, the possibility to adjust the head by 90° horizontally, left and right (180° in total), and a wide input power supply range 12-33Vac and 15-35Vdc. 20 metre nominal range.
Design and compactness: COMPACTA was designed to optimise the space by reducing its dimensions as much as possible in order to be well integrated in the various types of installation. Everything features BFT’s design language, with characterising shapes and geometry that blend elegance, function and practicality.
Flexibility: COMPACTA may use a wide input power supply range, 12-33Vac 50/60Hz and 15-35Vdc, making it usable in a vast number of installations. In addition, it may be wired to all the BFT control boards with test.
Maximum installation simplicity: the possibility of adjusting the infra-red head up to 90° both left and right (180° in total) means these photocells can be installed on walls or posts that are not aligned, thus saving time and obtaining a clean and seamless installation. On the vertical plane, optics are fixed, although the geometry allows recovering slight misalignments up to +/- 5°. Finally, once the correct angle of the optics is found, the cover locks to the base with a simple click.
